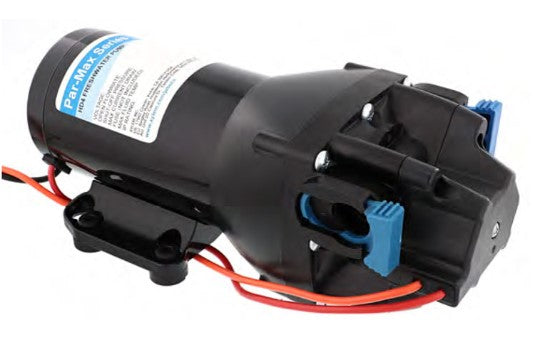

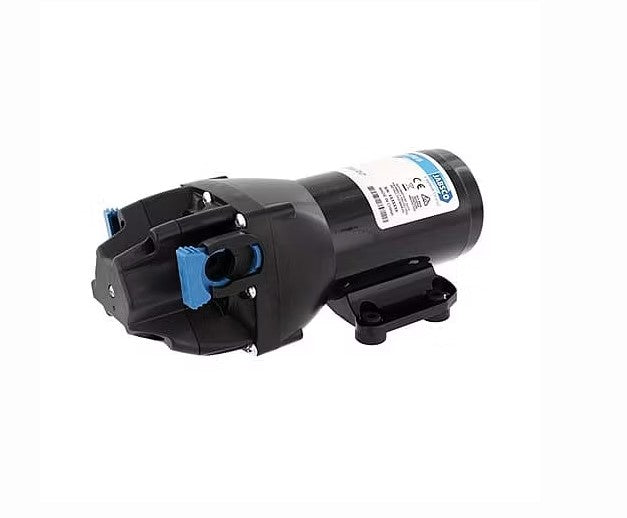

Jabsco Par-Max Heavy Duty Water System Pump, 24V, 4GPM.

Jabsco Q402J115S3A Par-Max Heavy Duty Water System Pump, 24V, 4GPM.

Co-molded diaphragm technology for long life and durability.

The Jabsco Q402J-115S-3A is a ParMax HD4 series Freshwater Delivery Pump, rated up to 4 GPM, 40 PSI shutoff, with integrated pressure switch, 1/2-inch Straight Hose barb, coupled to a 24 Volt DC Motor. This pump is the updated and improved Jabsco freshwater supply pump, designed to provide years of satisfactory service in applications both large and small. It is the new version pump and replaces the Jabsco models 316000094, 316200094, 326000094, 824000294, and 825000294. This HD (Heavy Duty) model includes a slightly wider diameter motor with a powder coated shell, a co-molded diaphragm technology for long life and durability, cast aluminum end bells and lower housing to improve pressure capability and life. The Pump head and upper housing material are Glass fiber reinforced polypropylene, with a co-molded TPV Diaphragm, and EPDM Check valves. This pump has an integrated, sealed pressure switch for on-demand operation, with a shut-off pressure of 40 PSI. It is also equipped with an integrated bypass module to reduce cycling and provide smoother flow. The motor is a permanent magnet brushed type, with a TENV (Totally Enclosed non-Ventilated) enclosure, with ingress protection to IPX6, and has vibration dampening mounting feet. This pump has an efficient and quiet operation. A plastic housing protects the motor from corrosion. This pump has a Self-priming capability of 7 feet which allows for installation versatility, and the pump can run dry without damage. This pump provides exceptional performance in an economical footprint. The maximum inlet pressure is 30 PSI. The maximum fluid temperature range for this pump is 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C).

• HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures.
• Efficient and quiet operation.
• Integrated, sealed pressure switch for on-demand operation.
• Self-priming allows for installation versatility.
• Runs Dry Without Damage.
• Self-Priming.
• Quick connect ports for ease of installation, servicing, and maintenance.
• Vibration dampening mounting feet.
• Equipped with integrated bypass module to reduce cycling and provide smoother flow.
• Quick Connect Strainer included.
