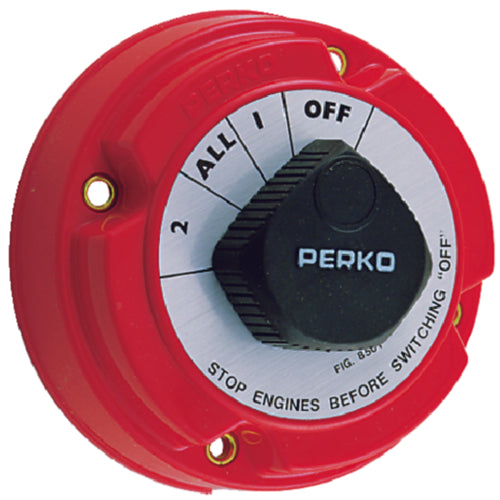

SeaChoice/Perko Main Battery Switch Without Lock - 2 Battery 250 Amp

For use with two or more batteries. For systems under 50V. Permits selection between batteries for starting and charging or operation of both in parallel. 250A continuous/360A intermittent. Made in the USA.

A tried-and-true design for a wide variety of applications.

Perko’s medium duty battery disconnect switches are super versatile. Because they are ignition protected, this switch can be installed almost anywhere, including engine rooms of gasoline powered boats. Compatible with 6V to 50V systems.

Key Features

• Make before break feature allows switching between “1” “All” and “2” while the engine is running.
• Fiber reinforced polycarbonate construction.
• Easy turn knob.
• Ignition protected.
• Five-year warranty.

Specifications

• Switch Type: Dual Battery switch disconnect.
• Switch Positions: 4.
• Battery Combine: Yes.
• Alternator Field Disconnect: no.
• Maximum Voltage: 6V-50V.
• Continuous Rating: 250A.
• Intermittent Rating (duration): 360A.
• Cranking Rating (30Sec): N/A.
• Battery Inputs: 2.
• Cable Size to meet ratings: N/A.
• Mounting Holes: # 10 Screws.
• Terminal Stud size: 5/16".
• Dimensions: 5 ¼"dia x 2 5/8" D.
• Weight: 1 Lb. (estimated).
• Approvals: UL Listed, CE.
