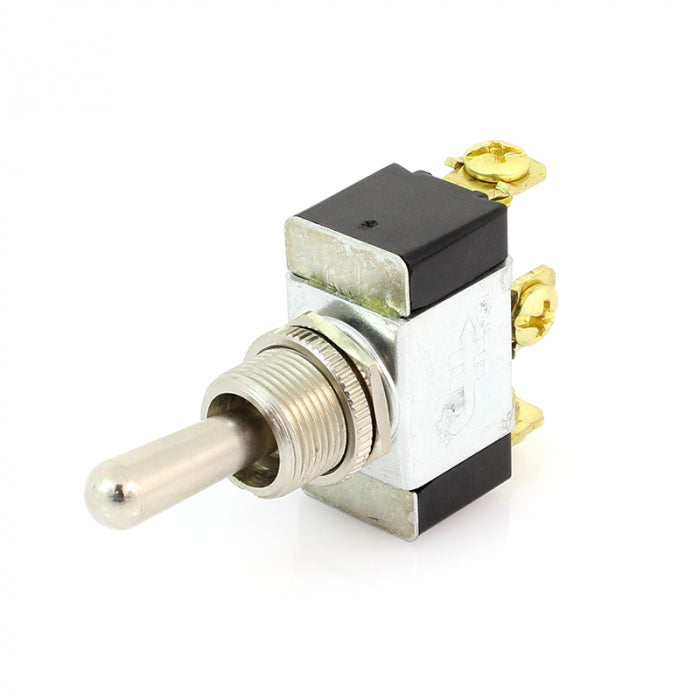

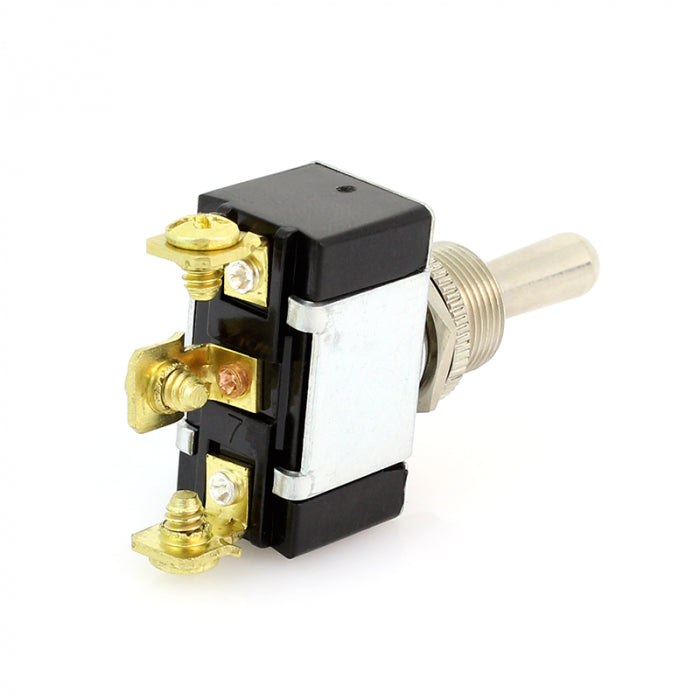

Cole Hersee 55021 Standard Heavy-Duty Metal Toggle Switch with Sealing O-Ring, SPDT, 25A

Cole Hersee 55021 Standard Heavy-Duty Metal Toggle Switch with Sealing O-Ring, SPDT, 25A

$13.99
$13.99
Sale Sold out
Shipping calculated at checkout.

COLE HERSEE SINGLE POLE - DOUBLE THROW-SPST MOM-ON--OFF - MOM ON

Item# CH-55021 Standard Heavy Duty Metal Switch

  • SPDT Mom On/Off/Mom On Screw
  • 3 Screw terminals, silver contacts
  • Stem: thread 15/32-32, L 12mm, D 12mm
  • Panel thickness: 6.35mm, Handle: 17mm
  • 25 A at 12 V DC; 15 A at 24 V DC; 10 A at 36 V DC
  • Multivoltage 12VDC, 24VDC and 36VDC

Description

Cole Hersee's 55021 BP Heavy Duty Toggle Switch with momentary on is designed for universal applications and fits panels up to 9/32" thick.

Features:

  • 25 Amp heavy duty toggle switch with standard handle
  • Fits panels up to 9/32" thick
  • For use in universal applications
  • Phenolic housing, plated steel cap, nickel-plated brass mounting stem, silver contacts

Specifications:

  • Switch type: Push-button momentary
    • Circuitry: SPST - Single pole / single throw
    • Action: (OFF) - ON
    • (OFF) = Momentary OFF
  • Material: Phenolic housing, plated steel cap, nickel-plated brass mounting stem, silver contacts
  • Common applications: Universal
  • Max. operating amperage: 25 Amps @ 12V DC / 15 Amps @ 24V DC / 10 Amps @ 36V DC
  • Terminals: (3) 6-32 screws
  • Mounting stem: 15/32" dia. x 15/32" L
