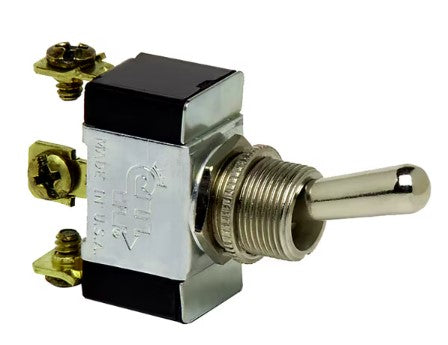

Cole Hersee 5584, Toggle Switch, SPDT On-On, 6-32 Screw, 25 Amp, 12V.
Cole Hersee 5584, Toggle Switch, SPDT On-On, 6-32 Screw, 25 Amp, 12V.
Couldn't load pickup availability
SKU:5584
Cole Hersee Screw Terminal SPDT.
Cole Hersee 5584, Toggle Switch, SPDT On-On, 6-32 Screw, 25 Amp, 12V.
Cole Hersee toggle switches are manufactured in many different variations to handle most vehicle and equipment applications. They are classified by the number of poles and throws to identify their basic operation. Cole Hersee toggle switches are DC rated up to 25 Amps, single pole, offered in both single and double throw actuations (SPST, SPDT), with a variety of terminations. They feature plastic casings with a plated steel cap.
- Universal application.
- Electrical Rating: 25A, 12V DC.
- Base Material: Phenolic. Actuator & Bushing Material: Brass/Nickel Plate.
- ( ) indicates momentary action.
• Plastic housing with plated steel cap
• Nickel plated brass handles
• Mounting stem: nickel plated brass 15/32"-32 thread, 15/32" long - fits panels up through 1/4" thick
• (+) indicates stem length of 11/32" - fits panels up through 3/16" thick
• Silver contacts for dependable operation
• Keyway in stem located in DOWN position
• BP indicates packaged in bubble packs for display
• (*) w/plasticized housing
• (**) "O" ring in stem
632850164207
