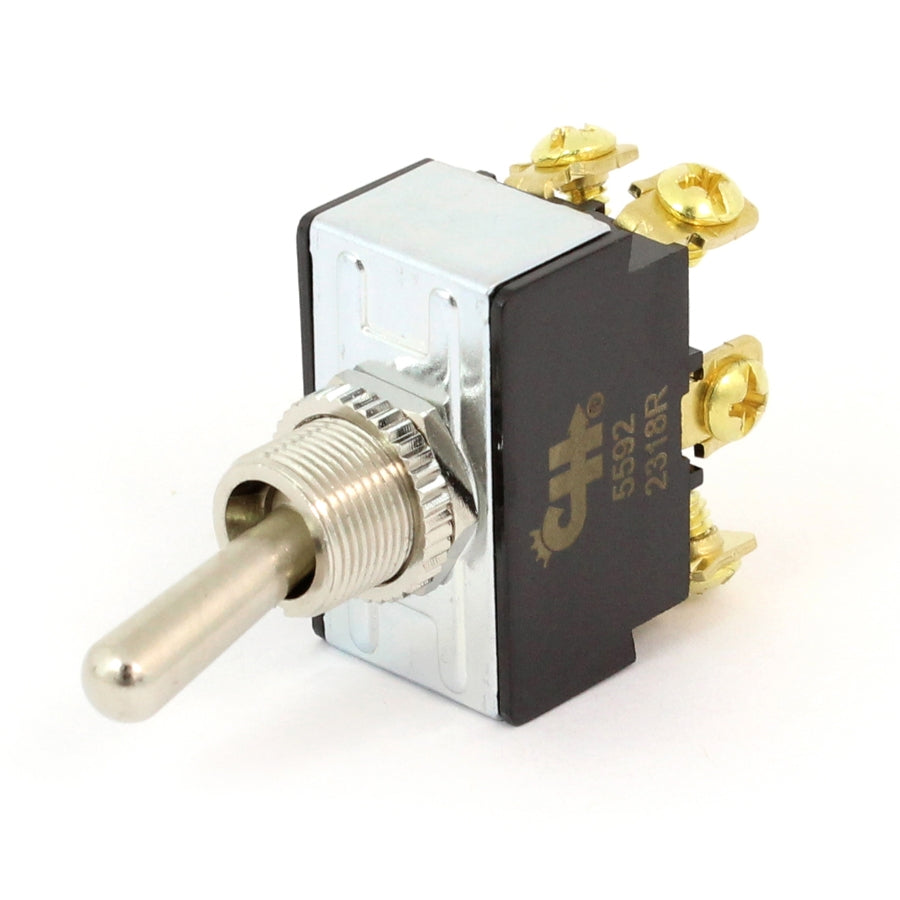

Cole Hersee 5592 Standard Heavy-Duty Metal Toggle Switch, DPDT, On-Off-On

Cole Hersee - Toggle Switch Screw Terminal ON - OFF - ON

Cole Hersee toggle switches are manufactured in many different configurations. They're available with ball, short or long handles, paddle and illuminated actuators. Housing are plastic, plastic/metal combination or die cast. Weather resistant options are available that make any standard toggle switch adaptable for use in applications where moisture, dirt and similar elements are present.
Toggle switch accessories include weather resistant boots, face plates, switch guards, and handle extensions.
All products listed in this section can be found in Section B of the Cole Hersee D-275 CATALOG.

• 25A at 12V, 15A at 24V, and 10A at 36V DC.
• Standard handle.
• Universal applicationIn Engineering, an application refers to a specific use for a device. For example, a Cole Hersee brand LVD finds an application in police cruisers (as well as many other uses)..
• Silver contactsA pair of devices that touch or come apart at the point where the switch throw makes or breaks the circuit. Silver contacts are common because of their low conductivity and low electrical resistance. Many Cole Hersee switches have silver contacts..
• Mounting stem is nickel-plated brass 15/32" -32 thread, 15/32" (11.9mm) long, and fits panels up to 9/32" (7.1mm)
• Phenolic housing, with plated steel cap.
• Nickel-plated brass mounting hardware.

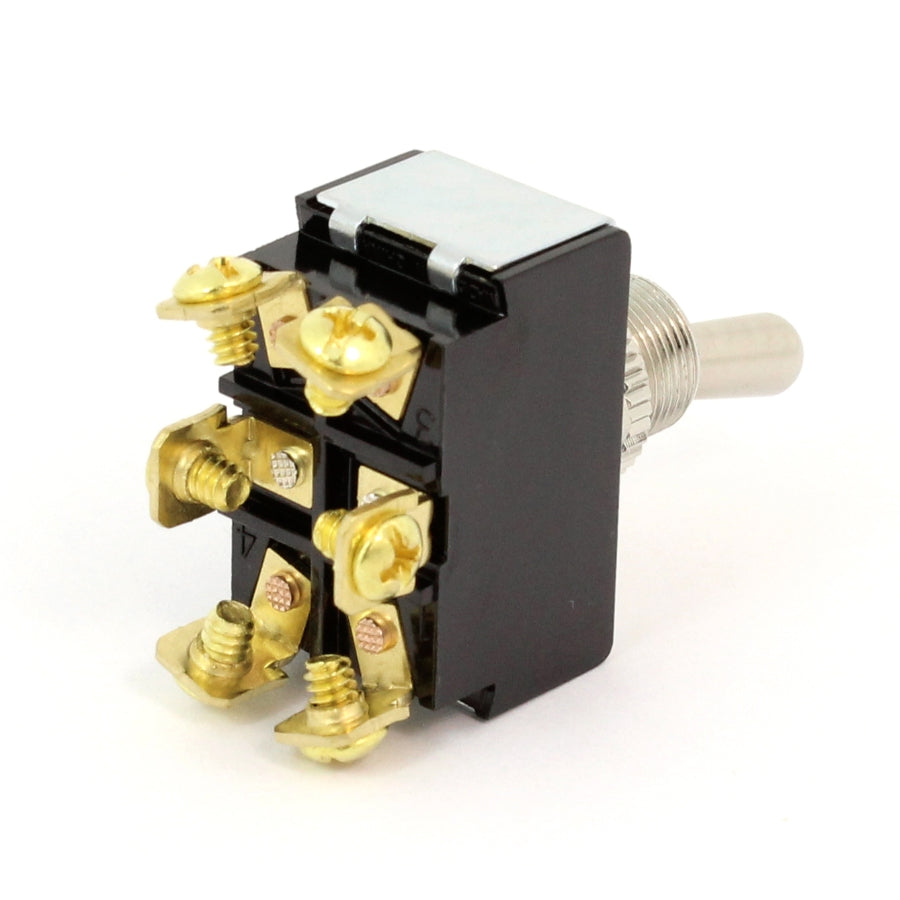

• Six screw terminals: 6-32 screws.
• Up: On, Center: Off, Down:On
