Blue Sea 5015 ST Glass 6 Circuit Fuse Block with Negative Bus and Cover.

Blue Sea 5015 ST Glass 6 Circuit Fuse Block with Negative Bus and Cover.

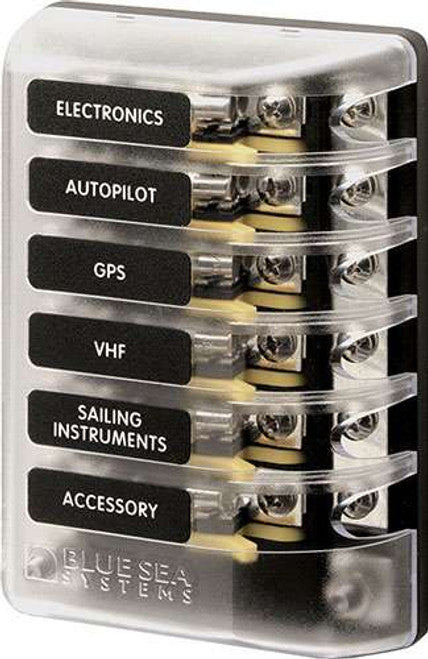

The Blue Sea 5015 ST Glass 6 Circuit Fuse Block is a 3AG Fuse Block System. Clear insulating cover with label recesses for standard Blue Sea Systems? labels. Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses. Tin-plated copper buses and Beryllium copper fuse clips give full 30 Ampere rating per circuit. Uses AGC (fast-acting), MDL (time-delay) and all other 3AG glass fuses.

Specifications:

• Material, Cover and Base: Polycarbonate.

• AGC/MDL Fuses available: 1/8 to 30 Amperes.

• Fuse Dimensions: 1/4" x 1-1/4".

• Block Dimensions: 3-1/4 x 5 x 1-1/4.

• Maximum Amperage per circuit: 30 Amperes.

• Maximum Amperage block: 100 Amperes.

• Maximum Voltage: 32 Volts DC.
